LeisureCraft Chimney Set for Back or Side Wall Installation
by Leisurecraft
The LeisureCraft Chimney Set is designed for efficient and safe installation of a wood-burning sauna stove. This set allows the chimney to be routed through the back or side wall of your sauna, ensuring optimal venting and heat control. Made with high-quality materials, this chimney system is engineered for durability and long-lasting performance in high-heat environments.
This LeisureCraft Chimney Set is an essential component for wood-burning sauna stoves, offering flexibility in installation while ensuring safe, efficient heat and smoke venting. Perfect for those who want a sleek and functional chimney solution for their sauna setup.
Key Features
- Double-Walled Chimney: Offers superior insulation for safe heat distribution, maintaining consistent airflow while protecting surrounding materials.
- Rectilinear Chimney Elements: Includes two double-walled chimney sections (500mm and 1000mm) for easy installation and customizable height adjustments.
- 90-Degree Tee with Drain Plug: Facilitates the horizontal exhaust system and allows condensation drainage, ensuring efficient operation.
- Wall Bracket: Secures the chimney to the exterior wall, providing stability and preventing movement.
- Chimney Stack Cover: Protects the chimney opening from debris while allowing proper ventilation.
- Top Mount Tip: Adds a sleek finishing touch to the top of the chimney, enhancing the overall appearance.
- Finishing Plate: Ensures a clean and professional finish where the chimney passes through the wall.
- Height from Sauna Floor to Chimney Top: 116" (295 cm), ensuring optimal height for smoke ventilation.
Specifications
- Rectilinear Chimney Length: 40" (101.5 cm) and 16" (40 cm) sections
- Chimney Base to Center Pipe Height: 22.5" (57 cm)
- Wall Distance: 8" (20 cm) from the side wall

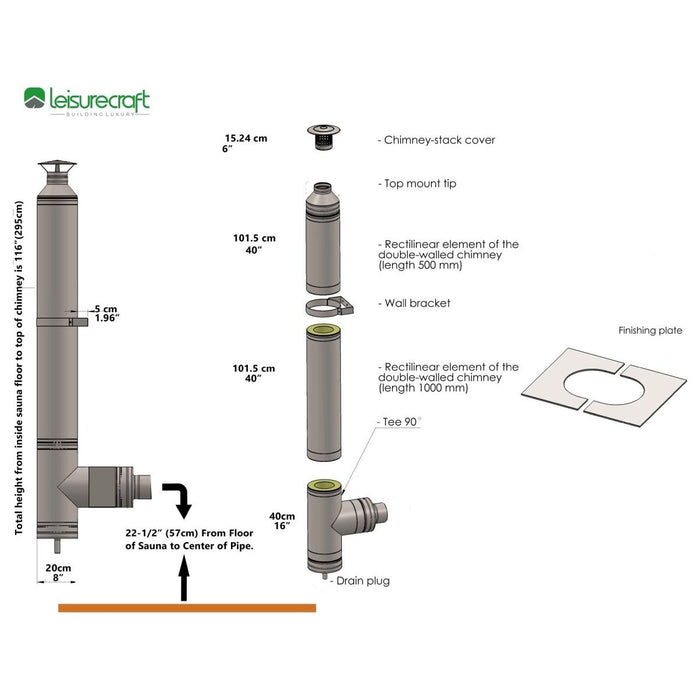

Included Components
- Chimney stack cover
- Top mount tip
- 90-degree tee with drain plug
- Two rectilinear double-walled chimney sections (500mm and 1000mm)
- Wall bracket for chimney stabilization
- Finishing plate for a clean wall exit
