Bathology Spectrum 210 Color Bathing LED Lighting System, Single Zone

Bring modern style and customizable illumination to your shower or bath with the Spectrum 210 LED Shower Light Switch & Brilliance Fixture. Featuring a sleek flush-mounted switch, vibrant RGB LED lighting, and a convenient 20-minute automatic off-delay timer, this lighting system delivers both functionality and elegance. Built with durable materials and CSA/UL-certified components, it's designed for long-lasting performance in residential and commercial bathroom applications.

Features

• Flush-mounted switch for a clean, low-profile installation
• Vibrant RGB LED lighting with 9 high-efficiency LEDs
• Wide-angle beam provides even light distribution
• 20-minute automatic off-delay timer
• Available in Polished Chrome or Brushed Nickel finishes
• Low-voltage operation for safe, energy-efficient performance
• Durable ABS plastic housing with optical-grade clear lens
• CSA and UL certified components for reliable operation

Includes

• Spectrum 210 flush-mounted switch
• Brilliance RGB LED light fixture
• 120VAC power supply
• Integrated 20-minute off-delay timer circuit
• Installation-ready components

Specifications

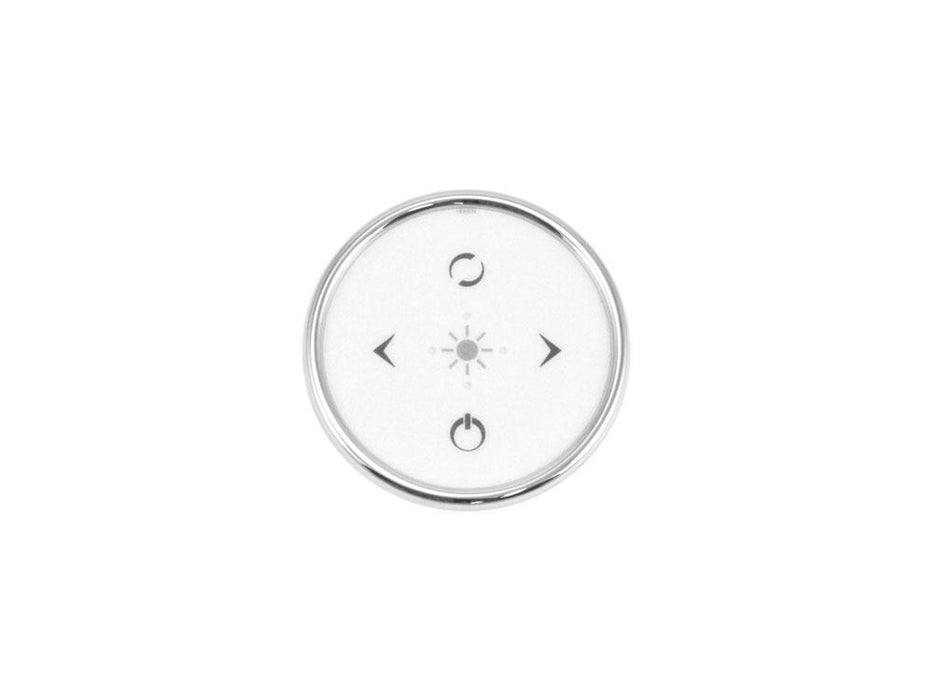

Spectrum 210 Switch

• Type: Flush-Mounted
• Operating Voltage: 5V DC
• Trim Diameter: 2-1/32"
• Trim Depth: 3/16"
• Trim Finish: Polished Chrome or Brushed Nickel
• Body Diameter: 1-17/32"
• Body Depth: 1-5/16"
• Rough-In Cut-Out: 1-1/2" Diameter
• Maximum Wall Material Thickness: 2-1/2"
• Time Circuit: 20-Minute Off Delay

Power Supply

• Input Voltage: 120VAC
• Circuit Rating: 15 Amps
• Current Draw: 0.155A @ 120VAC
• Dimensions: 6-1/8" L × 4-1/4" W × 2-1/8" H
• Testing: CSA Type 2
• Shipping Weight: 9 lbs

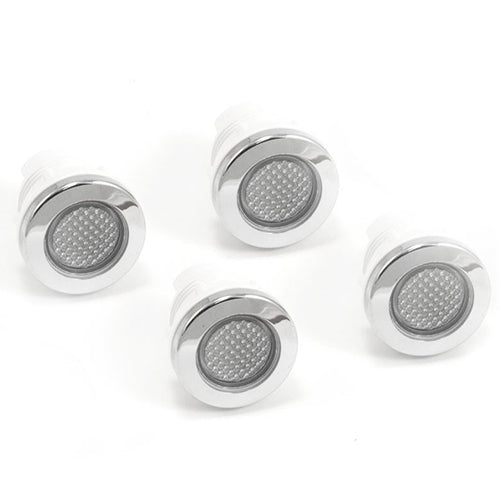

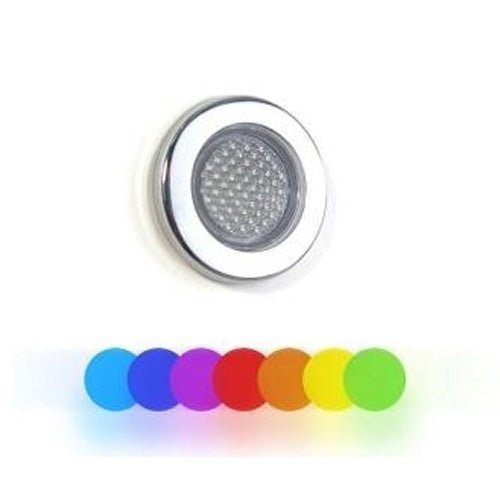

Brilliance LED Fixture

• Type: RGB LED
• Operating Voltage: 12V DC
• Maximum Input Current: 75 mA @ 12V DC
• LED Quantity: 9 LEDs
• Beam Angle: Wide Angle
• Trim Finish: Polished Chrome or Brushed Nickel
• Housing Material: ABS Plastic
• Lens: Clear, 1-11/64" Diameter
• Lens Material: Optical-Grade ABS
• Rough-In Cut-Out: 1-5/16"
• Trim Dimensions: 1-11/16" Diameter × 7/32" Profile
• Body Dimensions: 1-1/4" Diameter × 1-29/32" Deep
• Certification: CSA / UL
