Bathology Spectrum 360 Sauna, Dotless LED Lighting Control, Single Zone

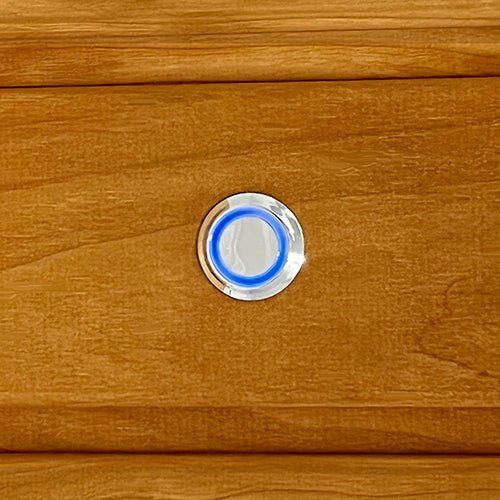

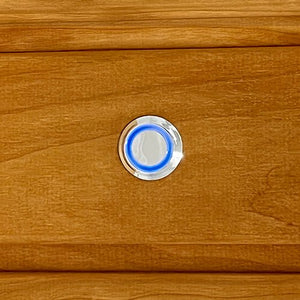

The Bathology Spectrum 360 is a sleek, touch-activated LED lighting control system designed for use with Bathology Brilliance 360 LED Light Strips. This system features a polished chrome, flush-mounted illuminated power button that provides simple, intuitive control—tap once to turn lights on or off, or press and hold to gradually dim or brighten the sauna lighting.

The Spectrum 360 system is engineered for both elegance and performance, offering seamless 0–100% dimming and the ability to connect up to four LED light strips through the included 4-way splitter. It comes complete with all essential components, including a power supply, extension cables, and DC barrel connectors, making installation fast and efficient.

Features

• Touch-sensitive chrome button for on/off and infinite dimming

• Flush-mounted illuminated control button with polished chrome finish

• Simple one-touch operation or press-and-hold dimming functionality

• Controls up to 4 LED light strips via included 4-way splitter

• Includes all necessary wiring and connectors for quick installation

• Designed for use with Bathology Brilliance 360 LED Light Strips

• UL, CE, and FCC certified components

Includes

• Touch Activated Dimmer Button (Flush-Mount, Illuminated)

• Power Supply (90W, 24VDC Output)

• Power Cord

• (2) 50' DC Extension Cables

• 4-Port DC Splitter

• Installation and Operation Manual

Specifications

Touch Activated Dimmer

• Model: Touch Activated Dimmer

• Operating Voltage: 24VDC

• Power Consumption: 72W

• Dimming Range: 0% – 100%

• Body Diameter: 3/4"

• Trim Diameter: 15/16"

• Depth: 13/16"

• Rough-In Cutout: 3/4"

• Finish: Polished Chrome with Illuminated Ring

• Connector: 50' Barrel Connector

• Ingress Protection Rating: IP20

Power Supply

• Model: Power Supply

• Input Voltage: 120VAC

• Output Voltage: 24VDC

• Power Consumption: 90W

• Nominal Amperage: 1.3A

• Connector Length: 50'

• Certifications: UL, CE, FCC
