Cariitti’s Premium Glass Fiber Light Sets provide a variety of options for lighting your sauna. Available in five sizes (7 spots, 8 spots, 11 spots, or 21 spots), they can be installed on the sauna ceiling or the benches of your sauna.

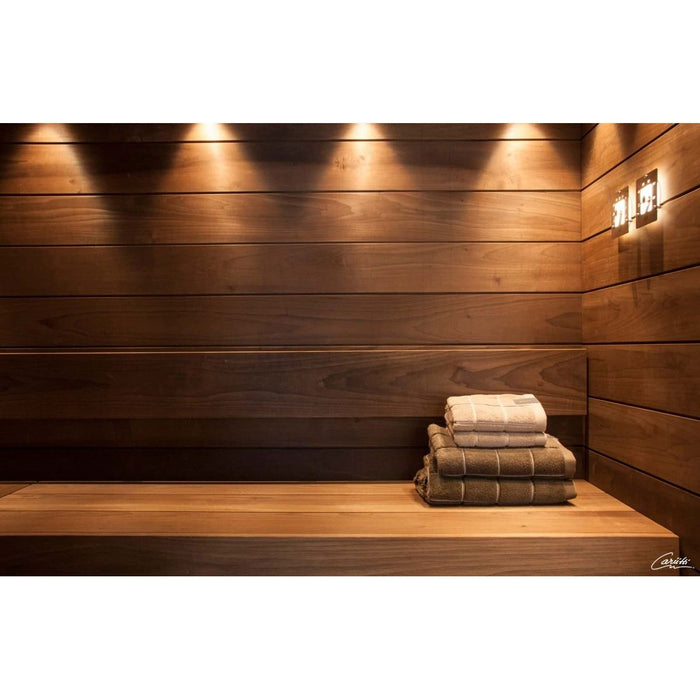

The glass fiber spots in Cariitti’s light sets create a halo of warm 2700K light that brings out the natural beauty of your sauna materials.
All of the lighting sets include a heater lens that can be used in one of the fiber spots to illuminate your heater, so you can not only feel but also see the steam rising from your heater.
Cariitti’s Premium Glass Fiber Light set with a dimmable VPAC27 Led projector ensures a low energy consumption and a long lifespan. The projector is completely silent and produces just a small amount of heat which makes it ideal for use in a sauna. A high RA index >90 together with a warm 2700K LED ensures an atmospheric sauna lighting.
The difference between Cariitti’s Standard and Premium set is the power output of the projector and the fiber thickness. The thicker the fiber the more light it emits.
Key Features
-

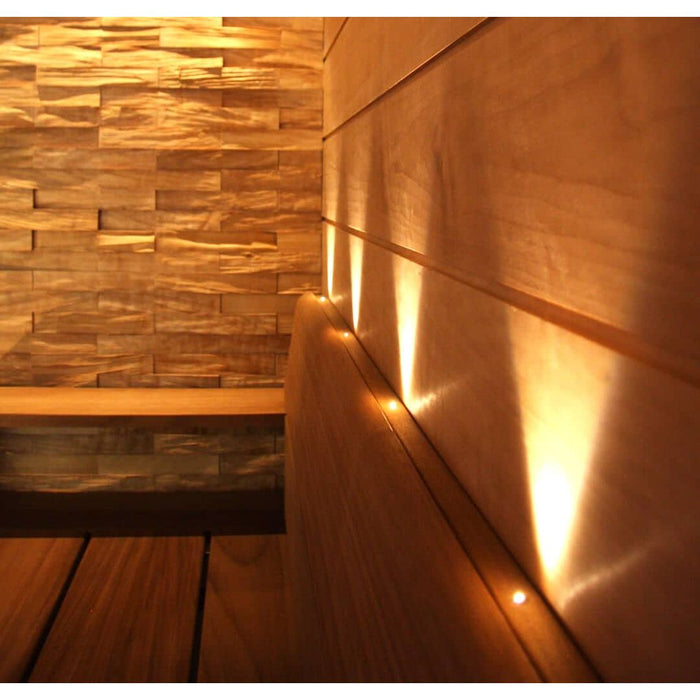

Versatile Installation: Install the glass fiber lighting on your sauna’s ceiling or benches.
-
Aesthetic Lighting: Creates a warm light halo that highlights the natural beauty of your sauna materials.
-
Heater Illumination: Includes a heater lens to illuminate your sauna heater, enhancing the löyly experience.
Advantages of Glass Fiber Lighting:
-
High-Temperature Resistance: Glass fiber withstands temperatures up to +356F (180C), essential for sauna use.
-
Safety and Durability: There is no electricity in the fibers; they only emit light. There are no electronics in the fibers, and they have no wearing parts, which means they last indefinitely or at least until your next renovation. They can even be reused.
-
Low Maintenance: Glass fiber lights are practically maintenance free, the only maintenance point is the projector, which has a service life of 50,000 hrs.
-
Cost-Effective: When comparing with LED strips, it is important to pay attention not only to the purchase price, but to the maintenance costs as well.
Specifications
-
Projector: VPAC27-US
-
Power: 120VAC, 60Hz, 0.12A, 14W, Class IP55
-
Light Output: 95lm, 1W, 2700K / Ra >90
-
Fiber Measures: S-Flex 2: 2pcs x 8.2ft, 3pcs x 9.8ft, 2pcs x 11.5ft, S-Flex 3: 1pc x 11.5ft
-
Certification: UL153 | CSA C22.2
-
Installation: Projector to be installed outside or under the sauna bench (if hardwired to the main supply), max 2.3 ft from the floor.
Projector Specifications
Model: VPAC27 -US
Power Supply: 120VAC, 60Hz
Current: 0.12A
Power Consumption: 14W
Protection Rating: Class IP55*
Installation: Outside of the sound or underneath the sauna bench
Max Height: 2.3 ft from the floor
Power Cord: Equipped with a power cord
Certifications: UL153 | CSA C22.2
Lighting Specifications
Total Spots:
- 7 Spots (for bench or ceiling)
- 1 Spot (for heater lens, to be installed above the heater)
Light Specifications:
-
Dimmable: Yes
-
Color Temperature: 2700K
-
Color Rendering Index (Ra): >90
-
Output: 1500lm
-
Power: 16W
Fiber Specifications
S-Flex 2:
- 2 pcs x 8.2 ft (2mm)
- 3 pcs x 9.8 ft (2mm)
- 2 pcs x 11.5 ft (2mm)
S-Flex 3:
Additional Components:
- 7 pcs locking rings
- 7 pcs size M5 ferrules
- Harness: S832
Important Notes
-
IP55 Rating: Dust-protected and protected against water jets from any direction.
-
Installation Warning: If the electrician removes the plug and connects the projector directly to the main supply, it must be installed inside the sauna on the wall under the benches. Electrical outlets are not permitted inside the sauna, and direct wiring is necessary to avoid heat-related issues.
5 Year Warranty: Cariitti lighting sets come with a 5-year warranty, excluding incorrect installation or use.
Light switch not included. We recommend using a regular light switch with a dimmer for your sauna light set, such as: Leviton switch 5655-2W or Zooz Momentary Push-Button in-Wall Switch ZAC99 from Amazon.
NOTE: GLASS FIBER CANNOT BE CUT AT THE INSTALLATION SITE, NO SHARP 90° BENDING OR NAILING.
