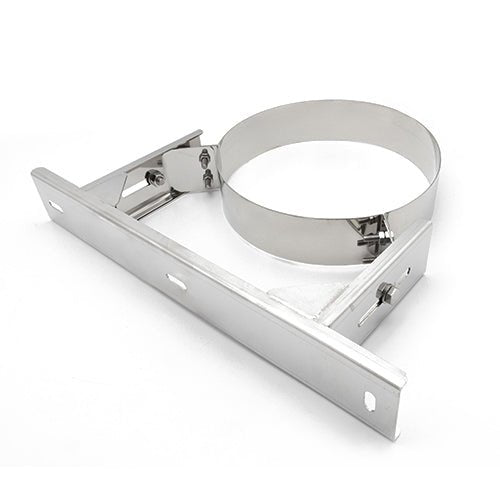

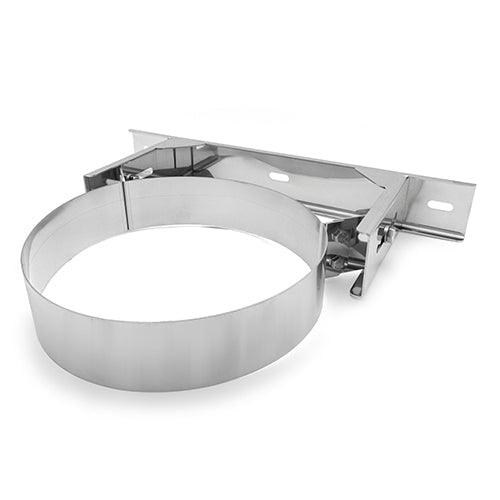

HUUM HK011 Adjustable Wall Bracket, 50-150mm
When you're running a chimney through the wall on a backside-connection wood stove, the wall bracket is what keeps the whole vertical column from shifting, vibrating, or pulling away from the structure over time. The HUUM HK011 Adjustable Wall Bracket mounts directly to the wall and clamps around the double-wall chimney pipe, holding it rigid at the correct standoff distance with minimum 50mm clearance maintained between the pipe and any combustible surface.
The 50–150mm adjustment range makes it compatible across a wide range of installations — different framing depths, interior vs. exterior wall placements, and varying pipe diameters from European-standard wood stove systems. Most quality European sauna stoves use the same 150mm double-wall chimney diameter, so this bracket works cleanly across HUUM, Harvia, IKI, Narvi, Kastor, and comparable brands.
Specifications
| Spec | Detail |
|---|---|
| Part Number | HK011 |
| Adjustment Range | 50–150mm (~2"–6") |
| Compatible Pipe | 150mm double-wall chimney (European standard) |
| Cross-Brand Compatibility | HUUM, Harvia, IKI, Narvi, Kastor, and most European wood stove chimney systems |
| Minimum Clearance (double-wall) | 50mm |
| Minimum Clearance (single-wall) | 500mm |
| Material | Heat-resistant stainless steel |
| Brand | HUUM (Estonia) |
| Return Policy | Non-returnable (genuine safety component) |
Installation Note: Per HUUM's IOM, double-wall chimney sections require a minimum 50mm clearance from any combustible materials. Single-wall sections in the same run require at least 500mm. Size your bracket position accordingly.
