Mr.Steam SAH6000 Steam@Home Series 6kW Steam Shower Generator Kit

Elevate your daily wellness routine with the Mr. Steam Steam@Home 6000, a complete residential steam shower generator package designed for in-home steam baths up to 150 adjusted cubic feet (ACF). This 6.0kW system delivers reliable steam performance in a compact, energy-efficient package—bringing spa-quality steam bathing into your life affordably.

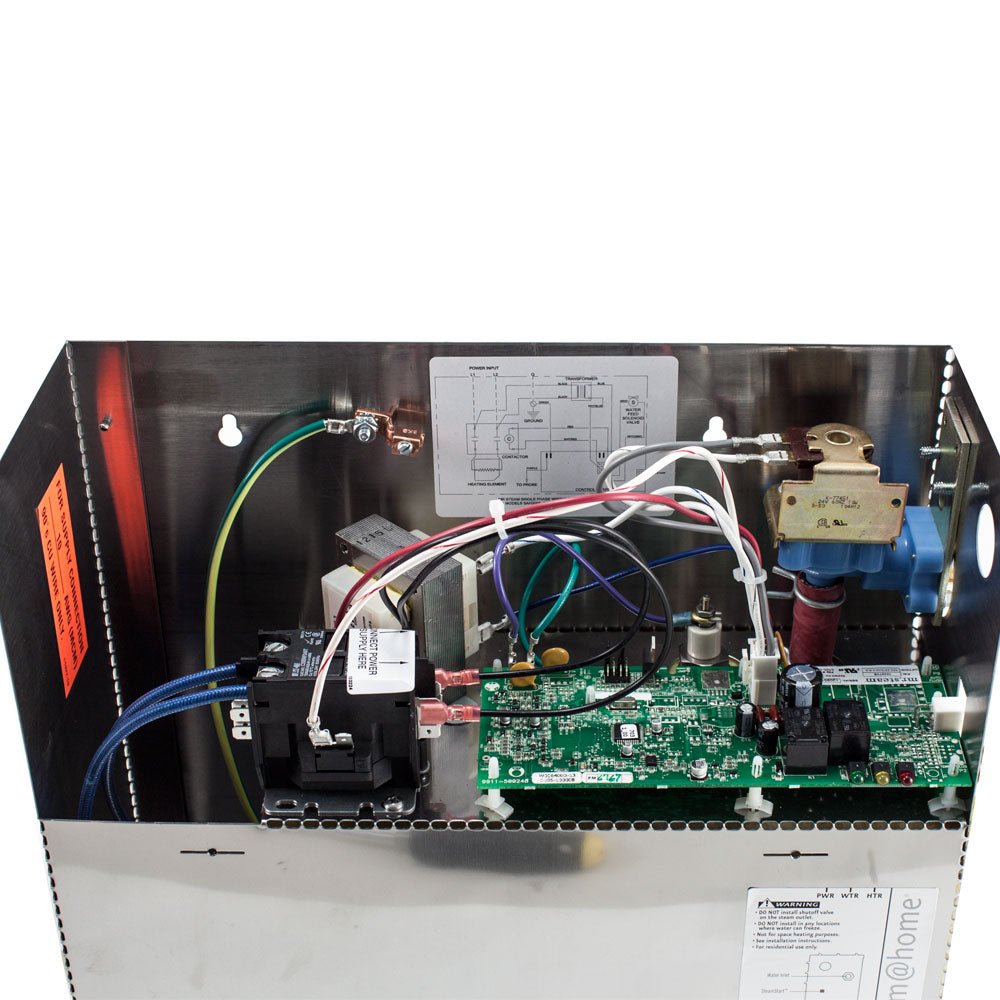

Engineered for consistency and comfort, the SAH6000 features a durable all-stainless steel construction and a high-performance printed circuit board that ensures smooth and reliable operation. A full port drain valve and ASME-rated safety valve enhance safety, while the low-voltage safety circuits offer added peace of mind.

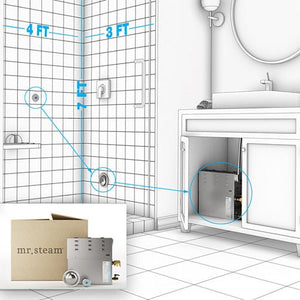

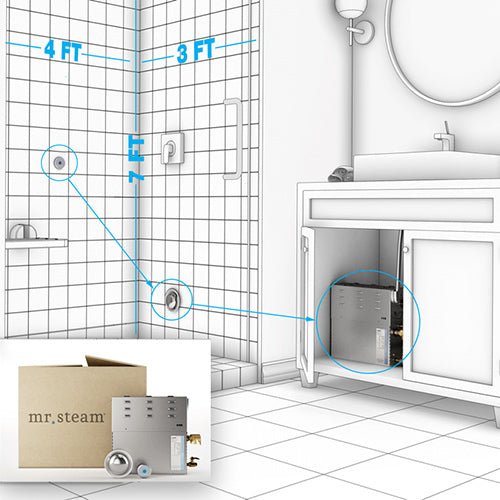

Despite its power, the unit’s compact footprint makes it ideal for tight installation spaces—up to 60 feet from the steam enclosure, such as in a vanity, closet, or utility room. And with water usage of less than one gallon per 20-minute session, it’s as efficient as it is luxurious.

Included in the Steam@Home 6000 package is the polished chrome SteamStart control, which initiates a preset 20-minute steam session with a single button press. The Cool-to-the-Touch steamhead features an integrated aromatherapy reservoir for enhanced relaxation, and the clear acrylic shield provides a clean, modern finish.

Available in 208V (SAH6000B1) or 240V (SAH6000C1), single-phase (1PH) configurations, the SAH6000 is UL/CSA/CE listed for safety and proudly designed and built in the USA. A limited lifetime warranty ensures dependable performance for years to come.

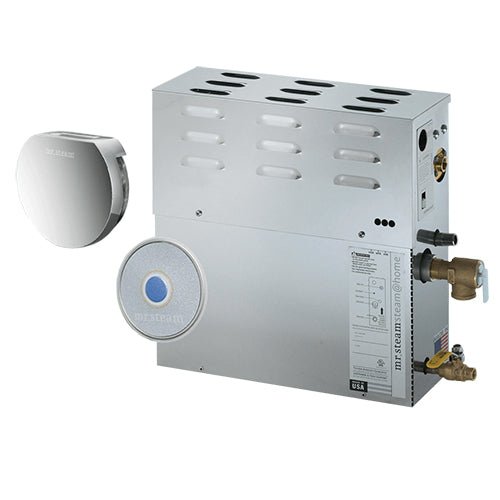

Includes

• 6.0kW stainless steel steam generator

• SteamStart surface-mounted control (1-1/2" diameter)

• 30-foot, 3-conductor shielded control cable

• Cool-to-the-Touch steamhead with aromatherapy reservoir

• Clear acrylic shield (Lexan, 4-3/8" diameter)

• RTV silicone sealant (0.5 oz)

• Installation & operation manual

• Limited lifetime warranty

Features

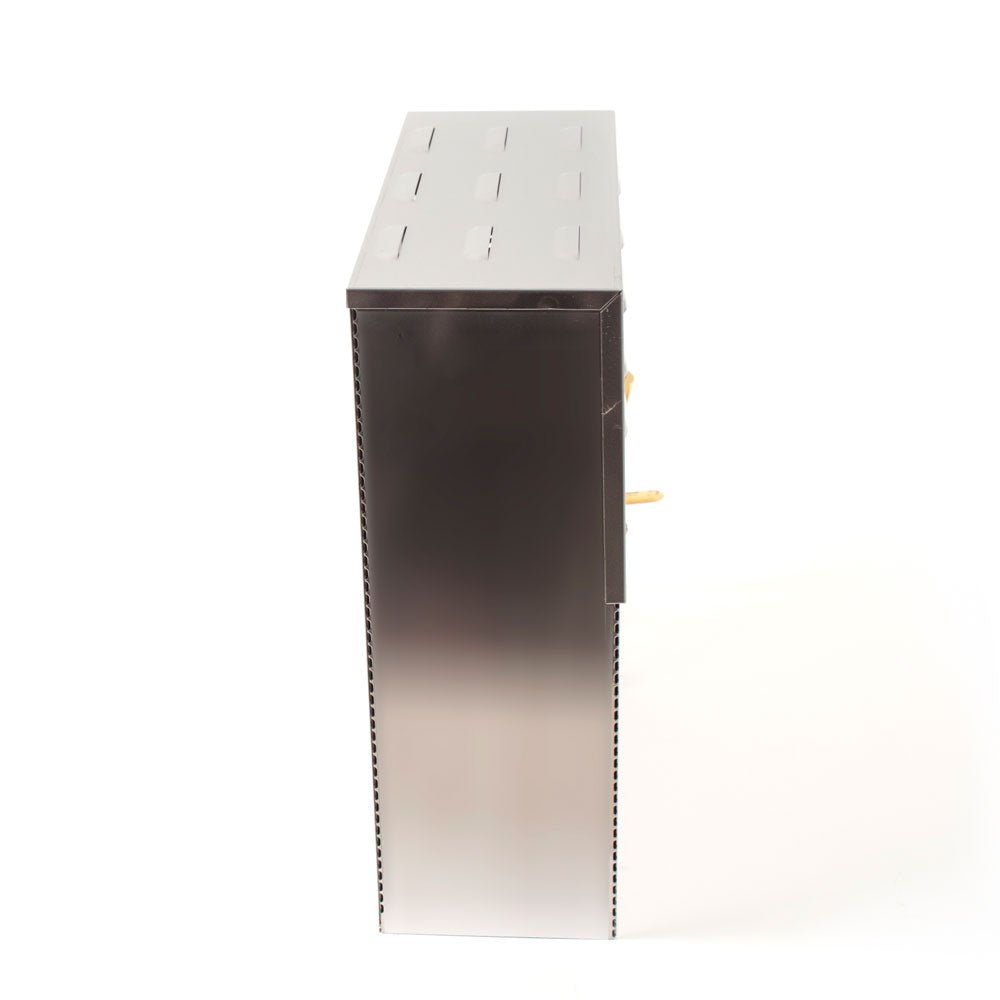

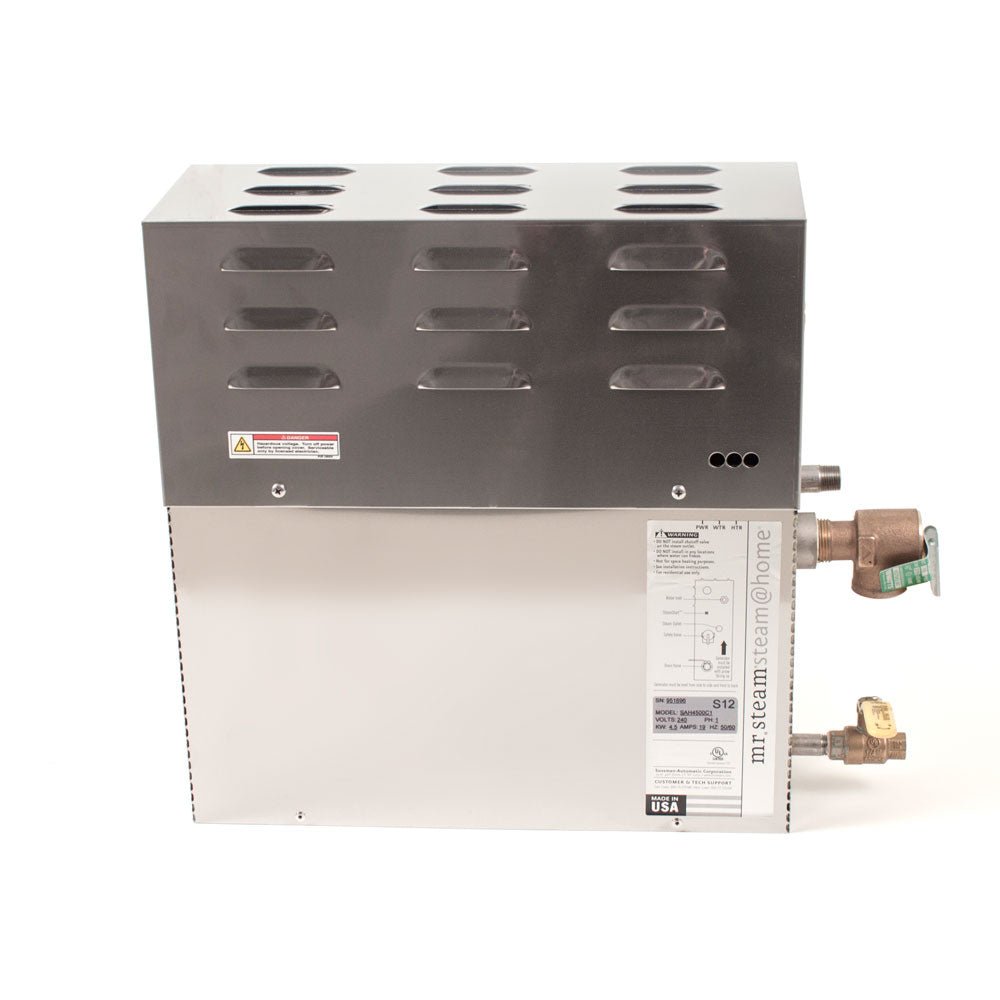

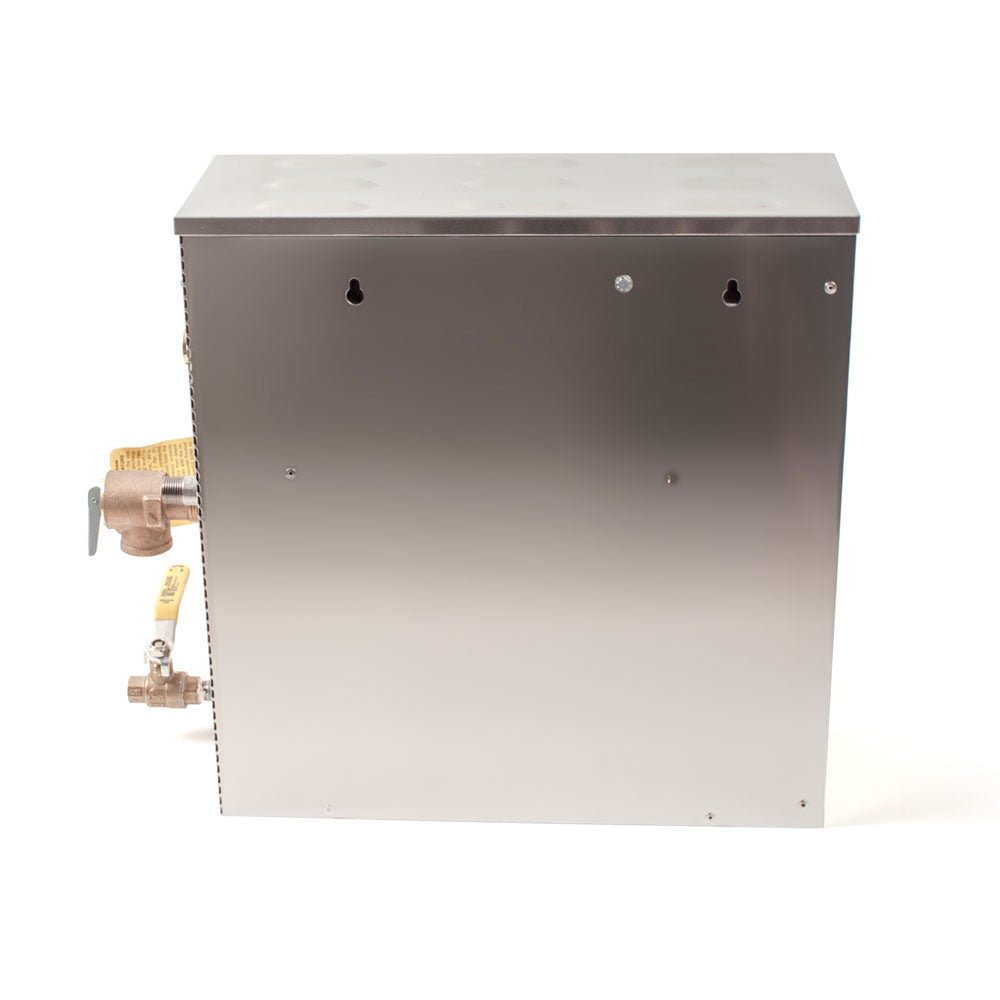

SAH6000 Steam Generator:

• All-stainless steel construction inside and out

• Reliable electronic components and water-level control

• ASME-rated safety valve and full port drain valve

• Built-in 24V low-voltage circuitry

• Compact, remote-installation design (up to 60 ft from steam shower)

• UL/CSA/CE listed for safety and compliance

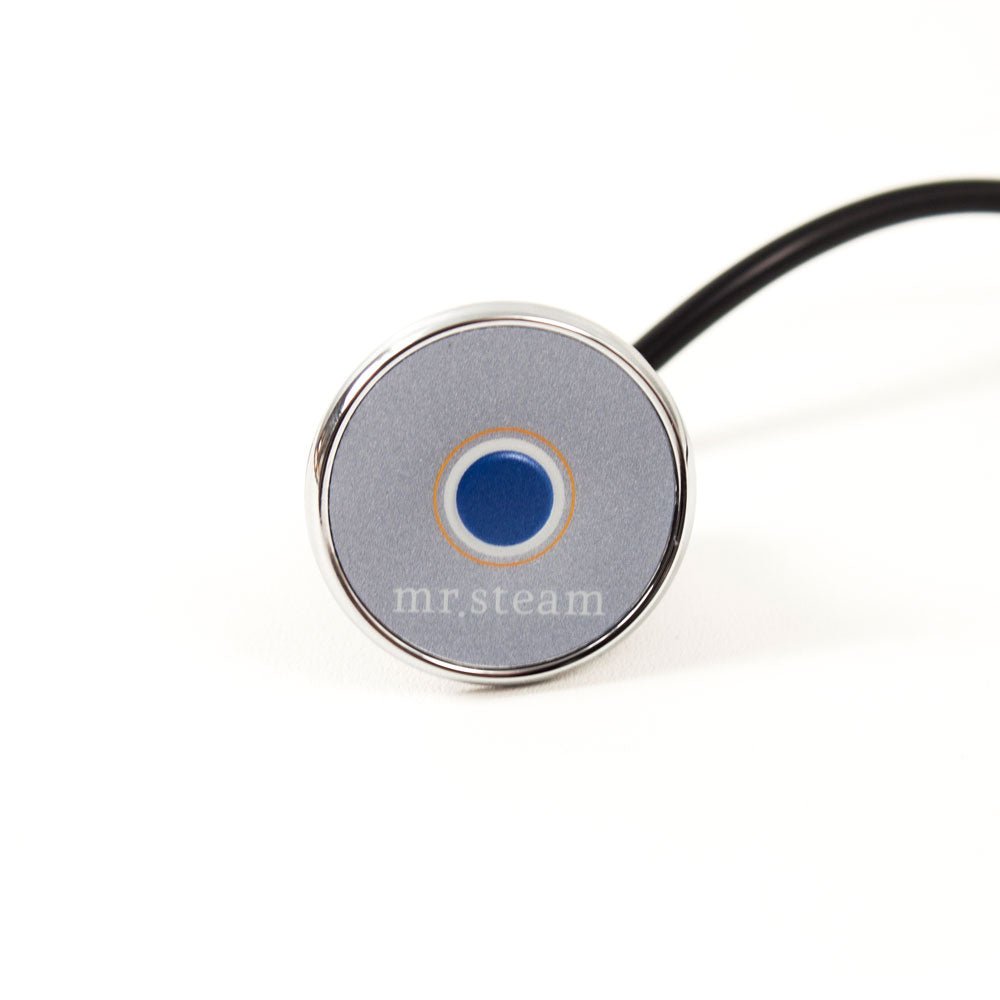

SteamStart Control:

• One-touch on/off operation

• Preset 20-minute session (non-adjustable)

• Polished chrome finish

• Mountable inside or outside the steam enclosure

• Low-profile and low-voltage

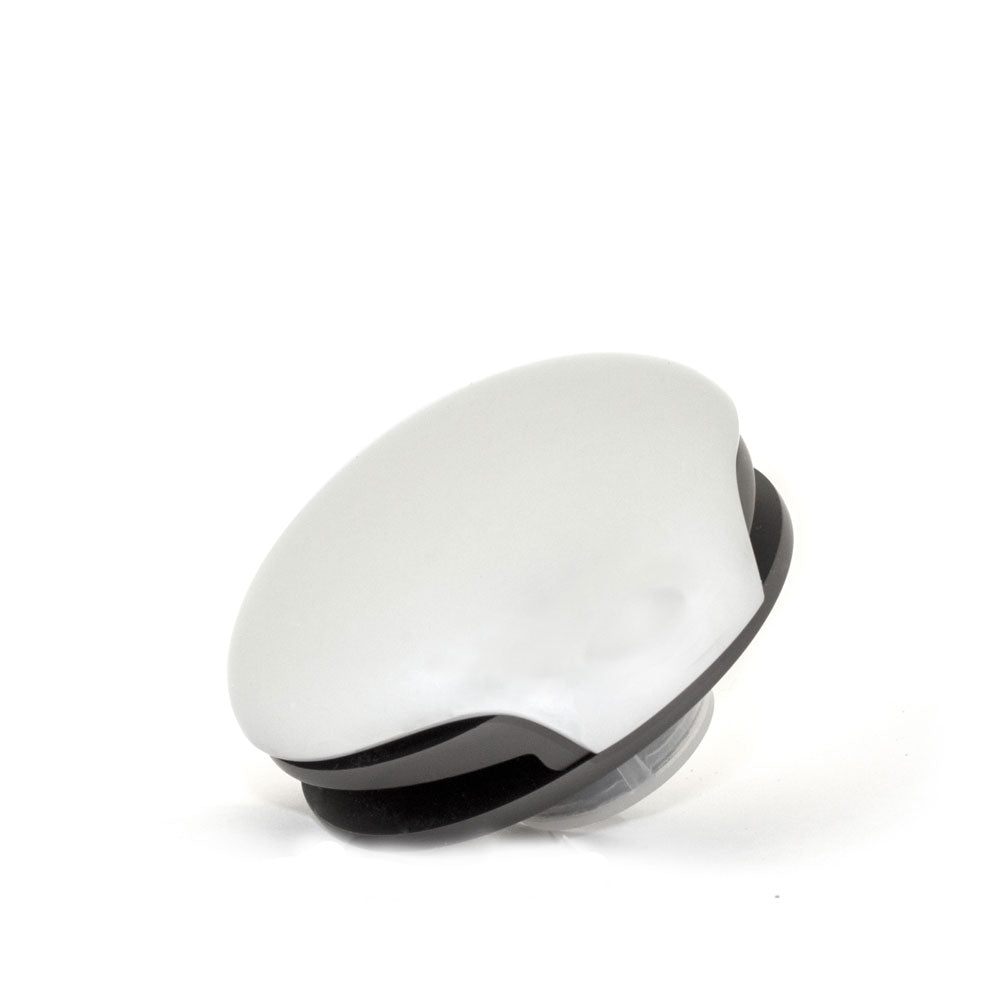

Cool-to-the-Touch Steamhead:

• Safer, quieter steam dispersal

• Integrated essential oil reservoir

• Polished chrome finish with a modern look

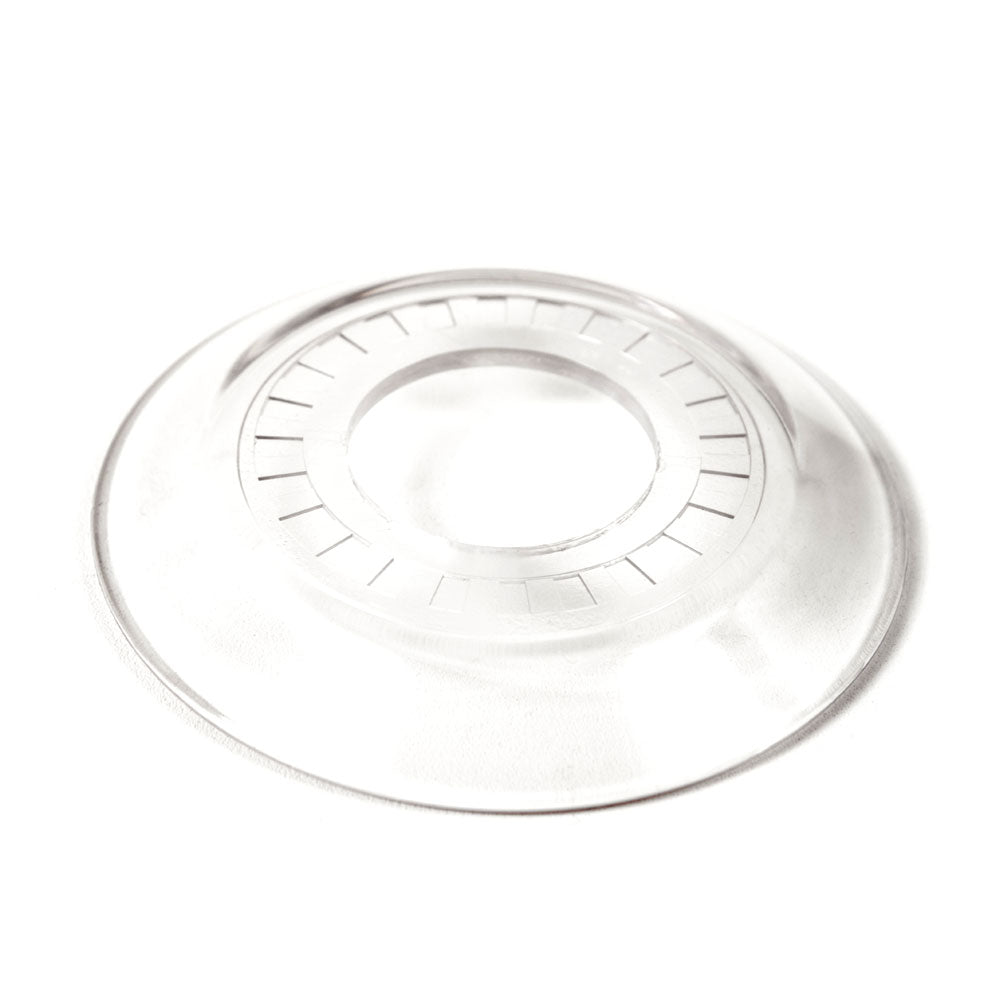

Acrylic Shield:

• Clear Lexan construction (1/8” thick)

• Adds a sleek, protective barrier over steamhead

• 4-3/8" diameter, 1/2" deep with integrated mounting hole

Specifications

• Model: SAH6000

• Maximum Room Size: 150 Adjusted Cubic Feet

• Power Rating: 6.0 kW

• Voltage Options: 208V or 240V, 1PH

• Dimensions: 14-3/8" W x 5-3/16" D x 14-7/8" H

• Shipping Weight: 25 lbs

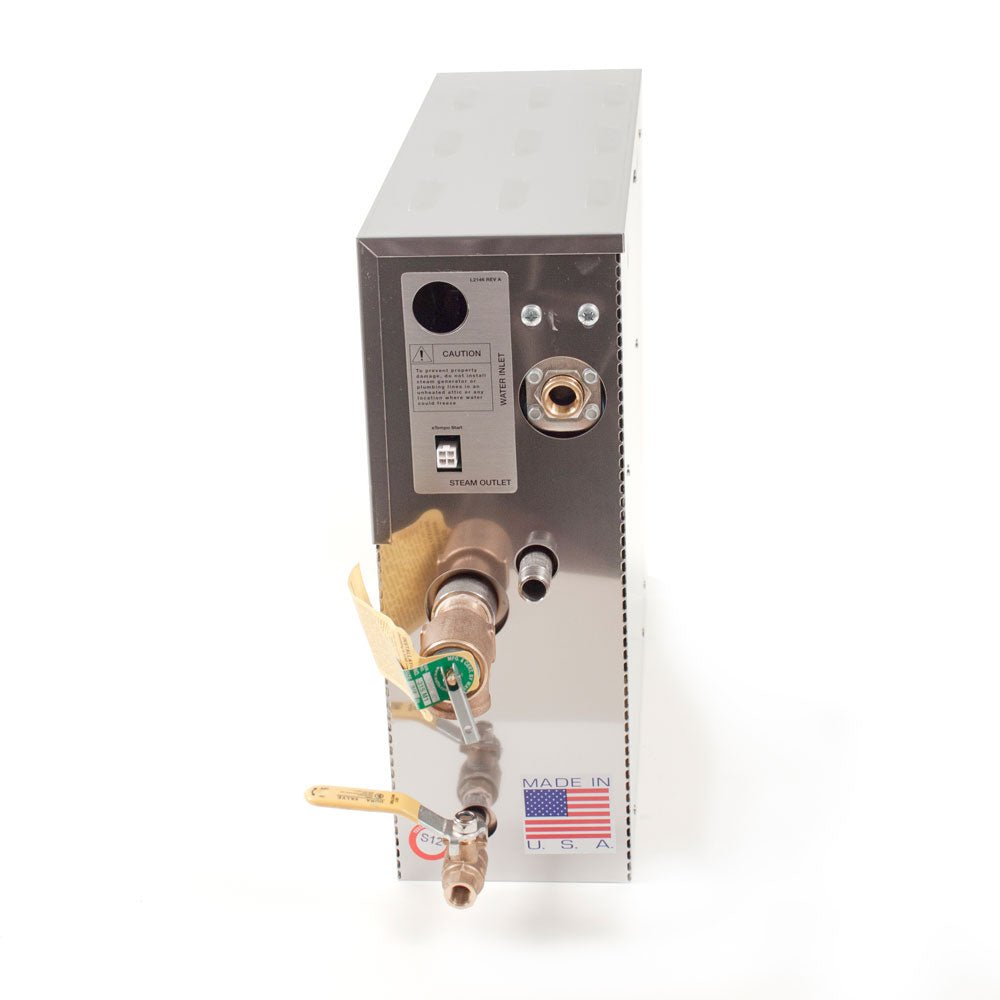

• Water Supply Connection: 3/8" NPT

• Steam Line Connection: 3/8" NPT

• Steam Head Connection: 1/2" NPT

• Drain Connection: 1/4" NPT

• Safety Valve Connection: 3/4" NPT (15 PSIG)

• Control Cut-Out: 7/8" Diameter

• Control Cable: 30', 3-Conductor, 24 AWG, Shielded

• Session Timing: Fixed 20 minutes

• Adjustable Timer: No
