PROSAUNAS Dual-Zone Linear White LED Neon Light Kit Flexible, Dimmable, Waterproof, Wireless Controlled, WiFi, and Adjustable Length

Transform your sauna with PROSAUNAS Flexible Linear LED Sauna Lighting, a commercial-grade lighting solution designed specifically for the demanding heat and humidity of sauna environments. Featuring warm 3500K illumination, flexible installation options, dual-zone wireless control, dimming, and Wi-Fi connectivity, these low-voltage LED lights create a soft, inviting ambient glow while highlighting the natural beauty of your sauna. With IP67-rated light strips and connections and an operating temperature range up to 200°F, the PROSAUNAS lighting system delivers both style and reliable performance.

Features

• Warm white 3500K color temperature
• Flexible placement options:
  • Behind backrests
  • Under benches
  • In coves
  • Custom recessed applications
• Field-cuttable every 1.9 inches
• 99 lumens per foot
• Low-voltage 24VDC LED lighting
• Dimmable from 1–100%

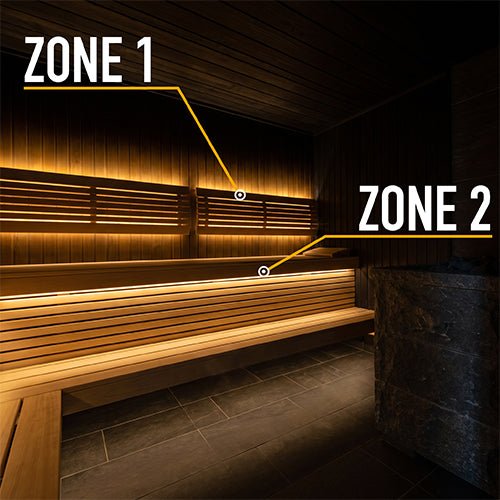

• Dual-zone lighting control
• Wireless RF control

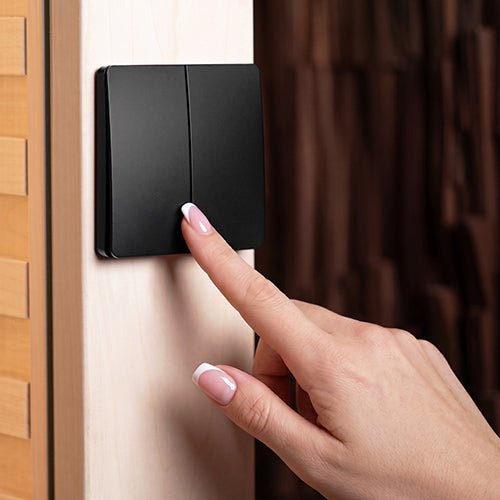

• Self-powered wall-mounted controller with no batteries required
• Up to 100 ft. wireless signal range

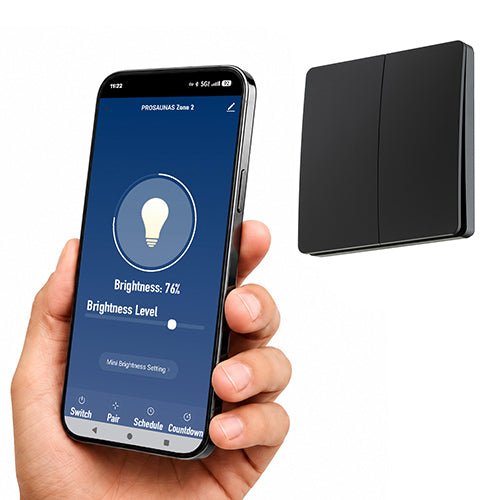

• Wi-Fi accessibility through the PROSAUNAS app
• Designed for high-temperature sauna environments
• Waterproof IP67-rated light strips and connections
• Encapsulated cables and connection points help protect against moisture and oxidation
• Operating temperatures up to 200°F
• Commercial-grade construction
• ETL, SGS, CE, EMC, UL, and FCC certifications, depending on component

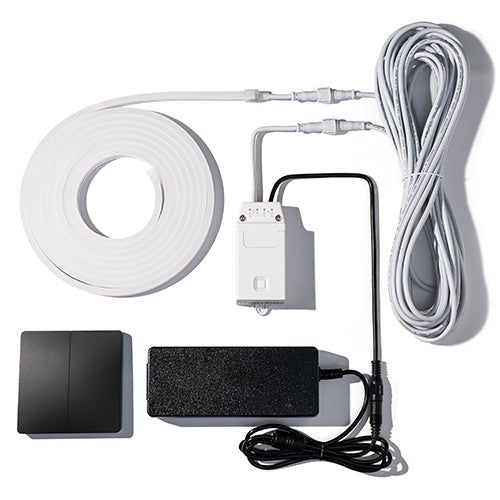

Includes

• LED Light Strips:
  • 2 × 10 ft
  • 2 × 16 ft
  • 4 × 10 ft
• Dimming Control
• RF Driver/Receivers:
  • 2 × 10 ft
  • 2 × 16 ft
• Power Supply
• AC Power Cable
• 30 ft Light Cables:
  • 2 × 10 ft
  • 2 × 16 ft
  • 4 × 10 ft
• 4-Way DC Splitter Cable
• Silicone Sealant
• Mounting Clips and Screws

Specifications

10' × 2 Model

• Operating Voltage: 24VDC
• Power Consumption: 60W total / 30W per strip
• LED: White, 3500K
• Lumens: 1,980 total / 990 per strip
• Connection: IP67 Twist Lock
• Dimensions: 120"L × 0.23"W × 0.47"H
• Metric Dimensions: 304.8 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

16' × 2 Model

• Operating Voltage: 24VDC
• Power Consumption: 96W total / 48W per strip
• LED: White, 3500K
• Lumens: 3,168 total / 1,584 per strip
• Connection: IP67 Twist Lock
• Dimensions: 192"L × 0.23"W × 0.47"H
• Metric Dimensions: 487.7 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

10' × 4 Model

• Operating Voltage: 24VDC
• Power Consumption: 120W total / 30W per strip
• LED: White, 3500K
• Lumens: 3,960 total / 990 per strip
• Connection: IP67 Twist Lock
• Dimensions: 120"L × 0.23"W × 0.47"H
• Metric Dimensions: 304.8 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

Dimming Control

• Output Signal: RF (433MHz)
• Power: Self-powered / No Battery
• Operational Life: 200,000 switchings
• Dimming Range: 1–100%
• Signal Distance: 100 ft
• Dimensions: 3.38"L × 3.38"W × 0.65"H
• Metric Dimensions: 8.6 × 8.6 × 1.7 cm
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Zones: 2-zone, single color
• IP Rating: IP67
• Certification: CE

Driver/Receiver

• Operating Voltage: 24VDC
• Rated Output Current: 9A
• Output Voltage: 24VDC
• Maximum Output Power: 200W
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Dimensions: 3.75"L × 1.72"W × 1.21"H
• Metric Dimensions: 9.5 × 4.4 × 3.1 cm
• Light Capacity: 4 lights / 25 ft
• IP Rating: IP20
• Certifications: CE and EMC

Power Supply

• Input Voltage: 120VAC
• Output Voltage: 24VDC
• Power Consumption:
  • 120W for 10' × 2 / 16' × 2
  • 160W for 10' × 4
• AC Current:
  • 1.4A for 10' × 2 / 16' × 2
  • 1.85A for 10' × 4
• DC Current:
  • 5A for 10' × 2 / 16' × 2
  • 6.67A for 10' × 4
• Operating Temperature: -22°F to 158°F (-30°C to 70°C)
• IP Rating: IP20
• Ratings/Certifications: UL, CE, FCC
