PROSAUNAS Single-Zone Linear White LED Neon Light Kit Flexible, Dimmable, Waterproof, Wireless Controlled, WiFi, and Adjustable Length

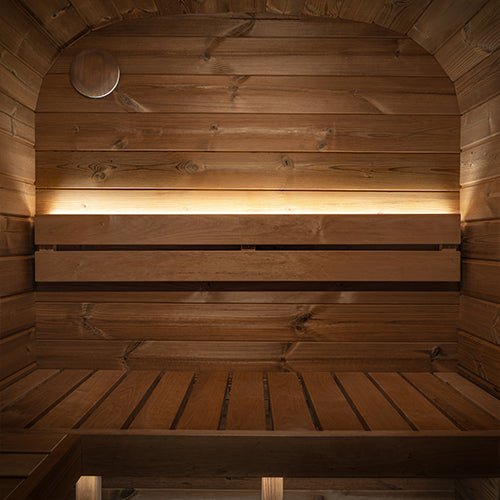

Transform your sauna with PROSAUNAS Flexible Linear LED Sauna Lighting, a commercially rated lighting system designed to provide warm, indirect illumination in high-temperature and high-humidity sauna environments. The flexible design allows for installation under benches, behind backrests, or in custom recessed applications, while the warm 3500K light enhances the natural beauty of your sauna. With dimmable wireless control, Wi-Fi connectivity, and IP67-rated lighting and connections, this single-zone system combines elegant ambiance with durable, sauna-ready performance.

Features

• Warm white 3500K illumination
• Flexible installation for:
  • Behind backrests
  • Under benches
  • In coves
  • Custom recessed applications
• Field-cuttable every 1.9 inches
• 99 lumens per foot
• Low-voltage LED lighting
• Dimmable from 1–100%

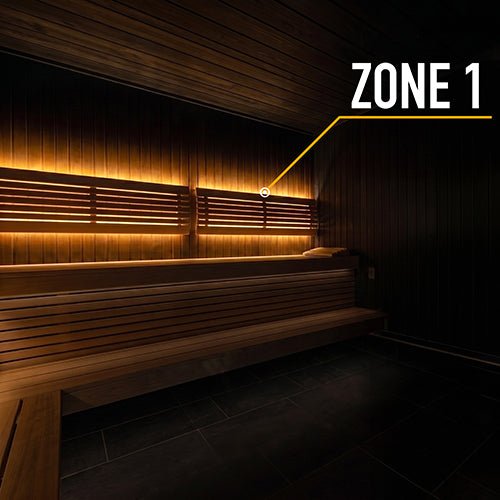

• Single-zone lighting control
• Wireless RF control

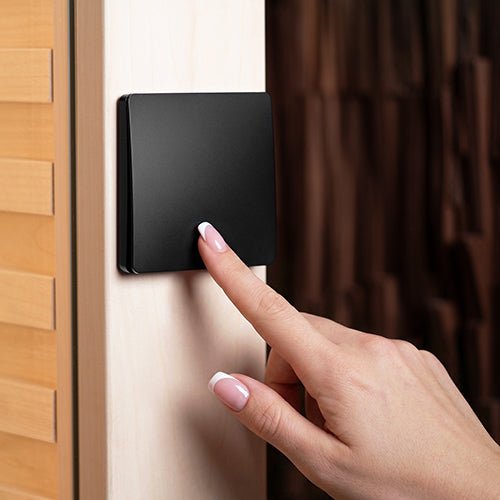

• Self-powered wall-mounted controller—no batteries required
• Up to 100 ft. signal range

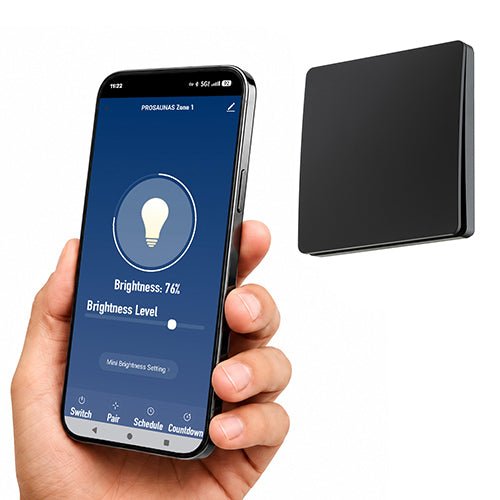

• Wi-Fi accessibility through the PROSAUNAS app
• Designed for high-temperature sauna environments
• Waterproof IP67-rated light strips and connections
• Encapsulated cable and connection points help protect against moisture and oxidation
• Operating temperature up to 200°F
• Commercial-grade construction

Includes

• LED Light Strips:
  • 1 × 16 ft.
  • 2 × 16 ft.
  • 4 × 10 ft.
• Dimming Control
• RF Driver/Receiver
• Power Supply
• AC Power Cable
• 30 ft. Light Cable:
  • 1 × 16 ft.
  • 2 × 16 ft.
  • 4 × 10 ft.
• 2-Pin 4-Way Cable
• Silicone Sealant
• Mounting Clips and Screws

Specifications

16' × 1 Model

• Operating Voltage: 24VDC
• Power Consumption: 48W
• LED: White, 3500K
• Lumens: 1,584
• Connection: IP67 Twist Lock
• Dimensions: 192"L × 0.23"W × 0.47"H
• Metric Dimensions: 487.7 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

16' × 2 Model

• Operating Voltage: 24VDC
• Power Consumption: 96W / 48W per light strip
• LED: White, 3500K
• Lumens: 3,168 / 1,584 per light strip
• Connection: IP67 Twist Lock
• Dimensions: 192"L × 0.23"W × 0.47"H
• Metric Dimensions: 487.7 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

10' × 4 Model

• Operating Voltage: 24VDC
• Power Consumption: 120W / 30W per light strip
• LED: White, 3500K
• Lumens: 3,960 / 990 per light strip
• Connection: IP67 Twist Lock
• Dimensions: 120"L × 0.23"W × 0.47"H
• Metric Dimensions: 304.8 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

Dimming Control

• Output Signal: RF (433MHz)
• Operating Voltage: Self-powered / No Battery
• Operational Life: 200,000 switchings
• Dimming Range: 1–100%
• Signal Distance: 100 ft.
• Dimensions: 3.38"L × 3.38"W × 0.65"H
• Metric Dimensions: 8.6 × 8.6 × 1.7 cm
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Zones: 1-zone, single color
• IP Rating: IP67
• Certification: CE

Driver/Receiver

• Operating Voltage: 24VDC
• Rated Output Current: 9A
• Output Voltage: 24VDC
• Maximum Output Power: 200W
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Dimensions: 3.75"L × 1.72"W × 1.21"H
• Metric Dimensions: 9.5 × 4.4 × 3.1 cm
• Light Capacity: 4 lights / 40 ft.
• IP Rating: IP20
• Certifications: CE and EMC

Power Supply

• Input Voltage: 120VAC
• Output Voltage: 24VDC
• Power Consumption:
  • 120W for 16 ft. configuration
  • 160W for 10 ft. configuration
• AC Current:
  • 1.4A for 16 ft. configuration
  • 1.85A for 10 ft. configuration
• DC Current:
  • 5A for 16 ft. configuration
  • 6.67A for 10 ft. configuration
• Operating Temperature: -22°F to 158°F (-30°C to 70°C)
• IP Rating: IP20
• Ratings: UL, CE, FCC
