PROSAUNAS Three-Zone Linear White LED Neon Light Kit Flexible, Dimmable, Waterproof, Wireless Controlled, WiFi, and Adjustable Length

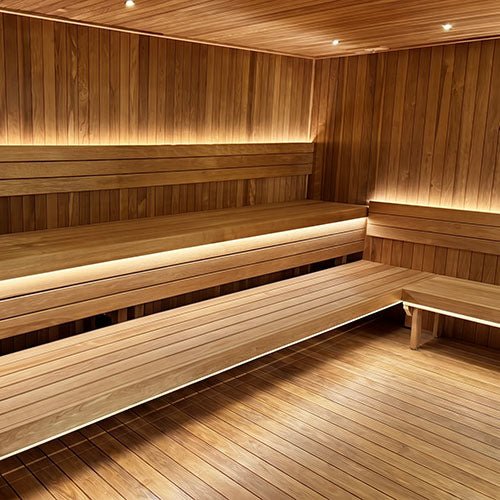

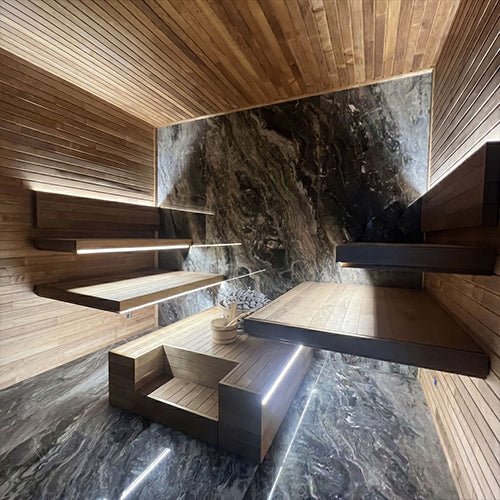

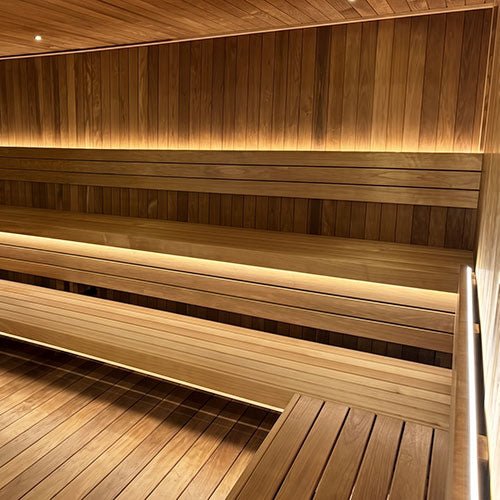

Transform your sauna with PROSAUNAS Three-Zone Flexible Linear LED Sauna Lighting, a commercially rated lighting system engineered to deliver sophisticated ambient illumination in high-temperature and high-humidity sauna environments. The flexible LED strips can be installed under benches, behind backrests, or in custom recessed applications to create a warm, inviting glow that highlights the natural beauty of your sauna. With three independently controlled lighting zones, dimmable wireless operation, and Wi-Fi connectivity, you can easily customize the atmosphere while enjoying durable, sauna-ready performance.

Features

• Warm white 3500K color temperature
• Flexible placement options:
  • Behind backrests
  • Under benches
  • In coves
  • Custom recessed applications
• Field-cuttable every 1.9 inches
• 99 lumens per foot
• Low-voltage 24VDC LED lighting
• Dimmable from 1–100%

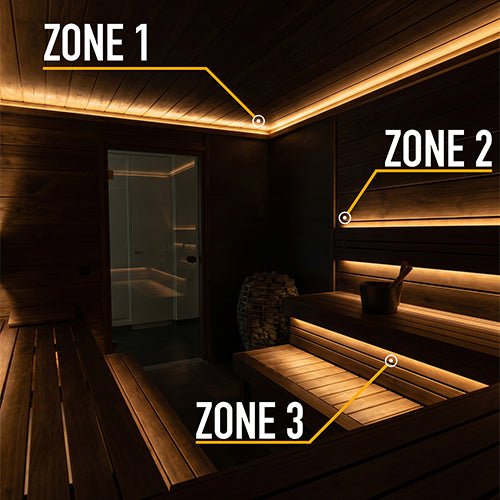

• Three-zone single-color lighting control
• Wireless RF control

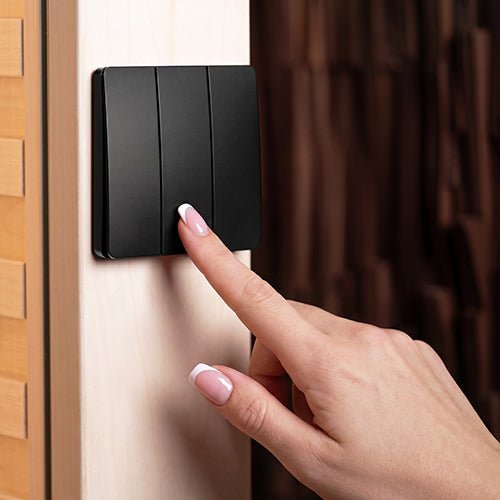

• Self-powered wall-mounted controller—no batteries required
• Up to 100 ft. signal range

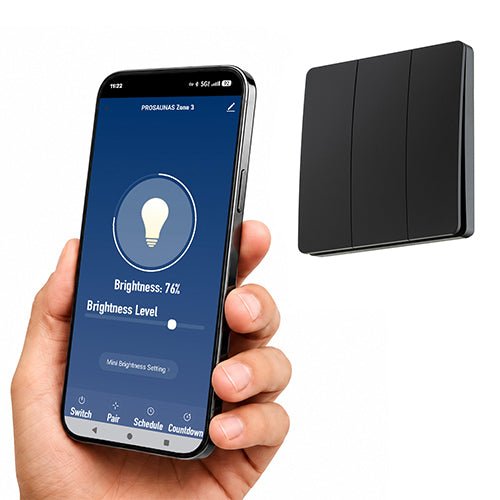

• Wi-Fi accessibility through the PROSAUNAS app
• Designed for high-temperature sauna environments
• IP67-rated light strips and connections
• Encapsulated cable and connection points help protect against moisture and oxidation
• Operating temperatures up to 200°F
• Commercial-grade construction

Includes

• LED Light Strips:
  • 3 × 10 ft.
  • 3 × 16 ft.
• Dimming Control
• RF Driver/Receivers:
  • 3 × 10 ft.
  • 3 × 16 ft.
• Power Supply
• AC Power Cable
• 30 ft. Light Cables:
  • 3 × 10 ft.
  • 3 × 16 ft.
• 4-Way DC Splitter Cable
• Silicone Sealant
• Mounting Clips and Screws

Specifications

10' × 3 Model

• Operating Voltage: 24VDC
• Power Consumption: 90W / 30W per light strip
• LED: White, 3500K
• Lumens: 2,970 / 990 per light strip
• Connection: IP67 Twist Lock
• Dimensions: 120"L × 0.23"W × 0.47"H
• Metric Dimensions: 304.8 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

16' × 3 Model

• Operating Voltage: 24VDC
• Power Consumption: 144W / 48W per light strip
• LED: White, 3500K
• Lumens: 4,752 / 1,584 per light strip
• Connection: IP67 Twist Lock
• Dimensions: 192"L × 0.23"W × 0.47"H
• Metric Dimensions: 487.7 × 0.6 × 1.2 cm
• Operating Temperature: -13°F to 200°F (-25°C to 93°C)
• IP Rating: IP67
• Certification: ETL and SGS

Dimming Control

• Output Signal: RF (433MHz)
• Power: Self-powered / No Battery
• Operational Life: 200,000 switchings
• Dimming Range: 1–100%
• Signal Distance: 100 ft.
• Dimensions: 3.38"L × 3.38"W × 0.65"H
• Metric Dimensions: 8.6 × 8.6 × 1.7 cm
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Zones: 3-zone, single color
• IP Rating: IP67
• Certification: CE

Driver/Receiver

• Operating Voltage: 24VDC
• Rated Output Current: 9A
• Output Voltage: 24VDC
• Maximum Output Power: 200W
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)
• Dimensions: 3.75"L × 1.72"W × 1.21"H
• Metric Dimensions: 9.5 × 4.4 × 3.1 cm
• Light Capacity: 4 lights / 40 ft.
• IP Rating: IP20
• Certifications: CE and EMC

Power Supply

• Input Voltage: 120VAC
• Output Voltage: 24VDC
• Power Consumption:
  • 120W for 10 ft. configuration
  • 160W for 16 ft. configuration
• AC Current:
  • 1.4A for 10 ft. configuration
  • 1.85A for 16 ft. configuration
• DC Current:
  • 5A for 10 ft. configuration
  • 6.67A for 16 ft. configuration
• Operating Temperature: -22°F to 158°F (-30°C to 70°C)
• IP Rating: IP20
• Ratings: UL, CE, FCC
